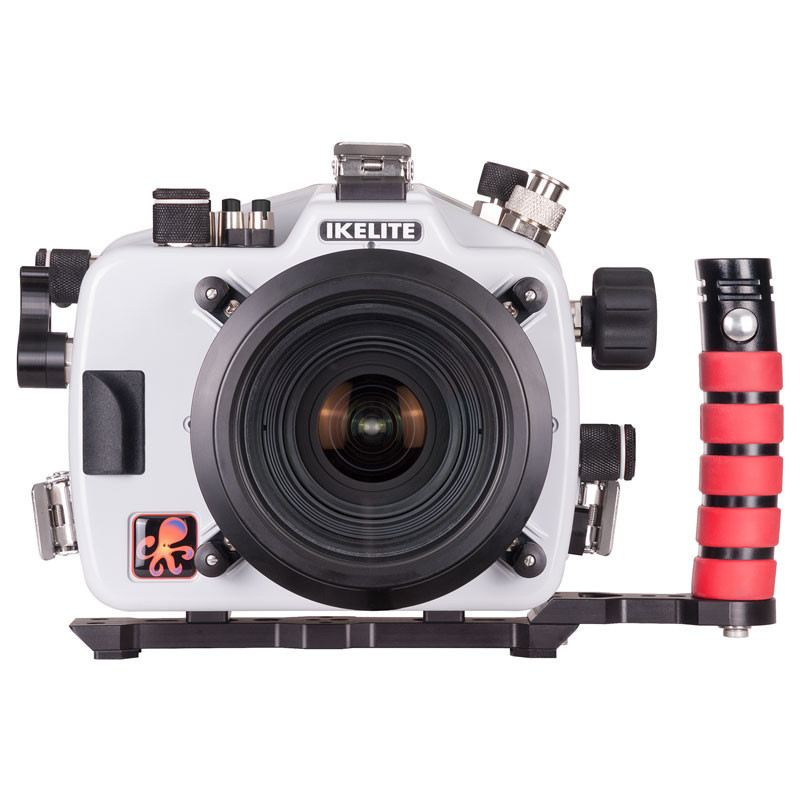

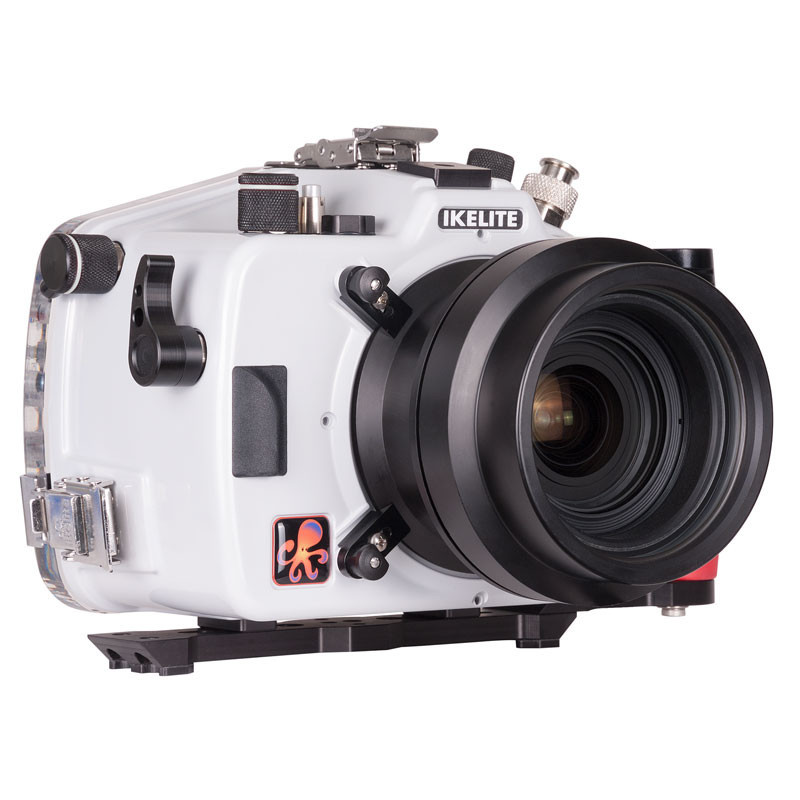

Ikelite Four Lock Mount for Canon 5D Mark III, 5D Mark IV, 5DS, 5DSR
Part #: Ike-6871.09
Product Overview:
Housing is made from ABS-PC & Lexan to be corrosion resistant. Housing also uses the Four Lock mount - compatible with legacy standard and modular ports. Buttons are ergonomically designed which allows access to important camera functions. Housing also features extra large knobs and soft touch zoom, ICS-5 bulkhead connector with manual hotshoe, aluminum tray and left handle have been included on the housing already. Vacuum valve and pump sold separately. Housing is rated upto 200 ft. (60m).
Read about the Canon 5D Mark IV
Recommended Lenses
- Canon 8-15mm fisheye for exceptional wide-angle
- Tokina 10-17mm fisheye is a great alternative for ultra-wide angle and close-focus WA
- Canon 16-35mm II wide-angle lens for general wide-angle, sharks
- Canon 17-40mm in a compact wide flat port for pool / commercial shoots
- Canon 11-24mm - for exceptional wide-angle quality
- Canon 100mm macro lens for fish, macro and supermacro
Recommended Accessories:
What's Included:
- Underwater Housing with 200ft Back
- Base with Left-Hand Quick Release Handle
- Port Hole Cap
- Waterproof Bulkhead Cap
- Universal Zoom Set for Lenses Up to to 2.8" Diameter
- Universal Zoom Set for Lenses 2.8 to 3.0" Diameter
- Silicone Lubricant 1cc Tube
Specification:
- 200' (60m) depth rating
- 1/4-20 thread base mounts with 3.5" spacing
- Near neutral buoyancy in fresh water
- Actual buoyancy varies depending on choice of lens and port
- Weight 5.1 lb (2.3 kg) not including tray + handles
- Dimensions 9.2 x 7.1 x 6.6" (234 x 180 x 168 mm) including projections
Notes from Ikelite:
If using a camera with incompatible circuitry, Ikelite DS strobes will over-expose when used in TTL mode. To avoid over-exposure, we recommend either having your housing updated for use with the correct camera, or that you use your strobe(s) in manual power modes (non-TTL).
The above TTL updates are currently available at the cost of $150US plus applicable freight. The above compatibility limitations will still apply to updated circuitry, i.e. a housing updated for TTL with the 5D Mark IV will no longer provide TTL operation with 5DS (R) cameras.
