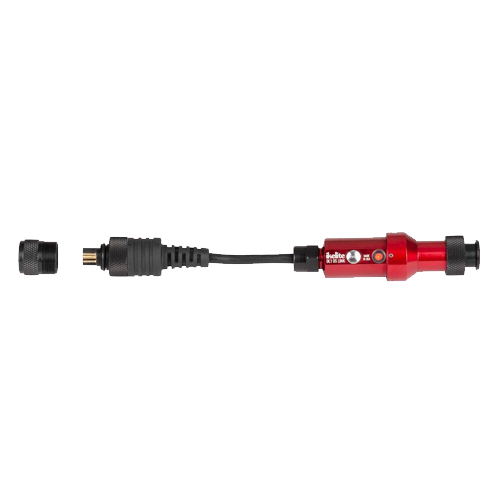

Ikelite DL1 DS Link Nikon TTL Converter

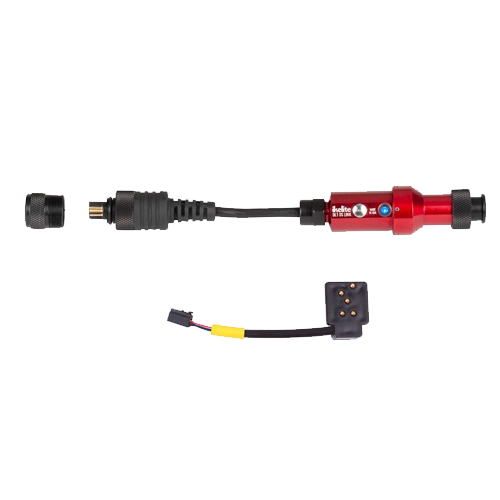

With Ikelite NT2 Hotshoe Kit

The Ikelite DL1 DS Link Nikon TTL Converter with Ikelite NT2 Hotshoe Kit is a great tool which provides a fast and accurate signal from your camera to the strobes to produce stunning photos. It does not require batteries and can easily switch from TTL to manual with a push of a button. When firing 2 strobes, a dual sync cord can be attached to a single DL1 DS Link converter.

It is only compatible with Ikelite DS strobes. This product replaces the older Ikelite TTL Converters for Nikon (4301 / 4301.2 / 4301.3)

Key Features:

• Using an electronic sync cord is faster, more accurate and reliable compared to fiber optic TTL triggers
• No batteries are required
• Easy to switch from TTL to Manual with a push of a button
• Supports flash exposure (EV) compensation which was set in the camera
• Supports rear curtain flash
• Independently sealed
• Includes NT2 TTL Hotshoe for Ikelite DL DSLR housings

Housing Compatibility:

• Ikelite Nikon D500 Housing
• Ikelite Nikon D7100, D7200 Housing
• Ikelite Nikon D750 Housing
• Ikelite Nikon D7500 Housing
• Ikelite Nikon D800, D800E Housing
• Ikelite Nikon D810 Housing
• Ikelite Nikon D850 Housing
• Ikelite Nikon Z7 Housing

Camera Compatibility:

• Nikon D2X, D3, D4
• Nikon D40, D50, D60, D70, D70s, D80, D90
• Nikon D200, D300, D300s
• Nikon D500
• Nikon D600, D610, D700, D750
• Nikon D800, D810, D850
• Nikon D3300, D3400, D3500
• Nikon D5000, D5100, D5200, D5300, D5500, D5600
• Nikon D7000, D7100, D7200, D7500
• Nikon Z6, Z6 II, Z7

* Not compatible with any other models except as listed above

Strobe Compatibility

• DS50 strobes: above serial number 75510 with update
• DS51 strobes: above serial number 78700
• DS125 strobes: above serial number 7928
• DS160, DS161 strobes: all
• DS200 strobes: above serial number 7163

Sync Cord Compatibility

• Ikelite Housing to Ikelite Strobes # 45151
• Ikelite Housing to Two Ikelite Strobes # 45152
• Ikelite Housing to Ikelite Strobe # 4103.51 (out of production)
• Ikelite Housing to Two Ikelite Strobes # 4103.52 (out of production)

About Nikon TTL

TTL or "Thru-the-Lens" flash metering means the camera evaluates the scene and communicates exposure information directly to the compatible flash. The camera automatically adjusts the power output of the external flash so you don't have to.

TTL exposure is faster and often more accurate than setting the flash output manually. TTL can be the difference between getting a properly exposed image or not, especially when shooting fast-moving subjects and subjects that are moving towards or away from you. TTL is by far the easiest way to shoot perfectly exposed macro photography and allows you to concentrate on focus and framing. When shooting wide angle or close focus wide angle (CFWA), set your camera to properly expose the background and let the DS1 adjust your strobe intensity for proper exposure of the foreground.

In the Box

• DS1 DS Link TTL converter
• Plug o-ring # 0136.13 (installed)
• Connector protector for plug # 0301.12 (installed)
• Waterproof Bulkhead Cap # 9104.7 (installed)
• NT2 Nikon TTL Hotshoe # 46064
• Silicone lubricant # 0184.1
