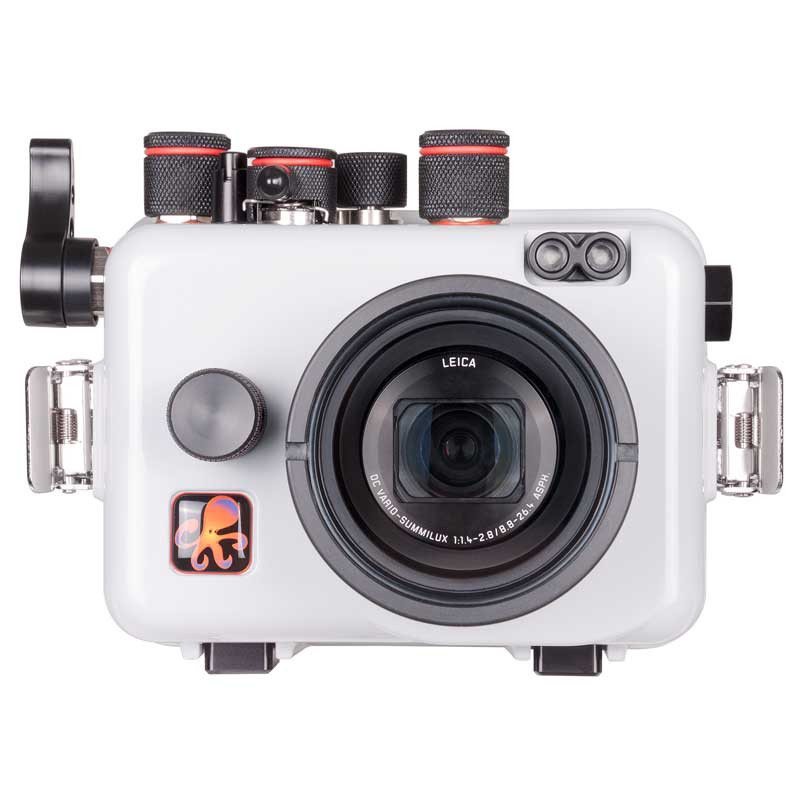

Ikelite Panasonic LX10, LX15 Underwater Housing
Part # 6171.01
Product Overview:
This compact and lightweight underwater housings provides full operation of the camera up to depths of 200 feet (60m). Ergonomics of the housing is great, The shutter lever has been updated to a more sensitive and natural feeling curved design.  The push buttons have been redesigned to reduce weight and salt build-up for smooth operation.The back of the housing features laser engraved control symbols which will never fade or fall off. The camera mounting plate allows ready access to the battery and memory card, and features a standard 1/4-20 mounting point for attachment to a tripod topside.
The new white ABS-PC blend housing provides strength and corrosion free performance year with minimal maintenance. The housings unique rear seal design prevents accidental twisting or stretching of the o-ring. Ikelite has also eliminated the o-ring groove which can trap sand, dirt, or debris. Two stainless steel locking lid snaps are simple to use and is very durable. The clear back allows you to see the o-ring to check if everything is a-ok.
67mm threaded port:
The front of the lens port is 67mm threaded for the direct attachment of external wide angle and macro lenses. This port is as close to the camera's lens as possible for the best image quality and minimal vignetting (dark shadows in the corners of the image) with external wet lenses. Vignetting can be eliminated by cropping the photo in post-production
Recommended Wet Lenses
- Bluewater +7 Macro Lens - Very light, sharp, can be stacked
- AOI UWL-09 Wide Angle Lens - Gives excellent wide-angle results
Related Underwater Gear Categories:
Â
- Compatible with Panasonic LX10 and LX15 cameras
- Controls for all camera functions except Flash open lever; flash must be opened prior to installation of camera in housing
- Optional Vacuum Kit for Accessory Port 1/2 Inch Holes for a worry-free dive.
- 200 ft (60m) depth rating
- Fiber optic connections for strobes
- Near neutral buoyancy in fresh water
- 1/4-20 thread tray mounting with 3-inch (76mm) spacing
- Weight 2.6 lb (1180 g)
- Dimensions 5.3 x 5.1 x 6.9 in (135 x 130 x 175 mm)
- 3.9-inch diameter glass lens port
- Compatible with Panasonic LX10 and LX15 cameras
- Controls for all camera functions except Flash open lever; flash must be opened prior to installation of camera in housing
- Optional Vacuum Kit for Accessory Port 1/2 Inch Holes for a worry-free dive.
- 200 ft (60m) depth rating
- Fiber optic connections for strobes
- Near neutral buoyancy in fresh water
- 1/4-20 thread tray mounting with 3-inch (76mm) spacing
- Weight 2.6 lb (1180 g)
- Dimensions 5.3 x 5.1 x 6.9 in (135 x 130 x 175 mm)
- 3.9-inch diameter glass lens port
