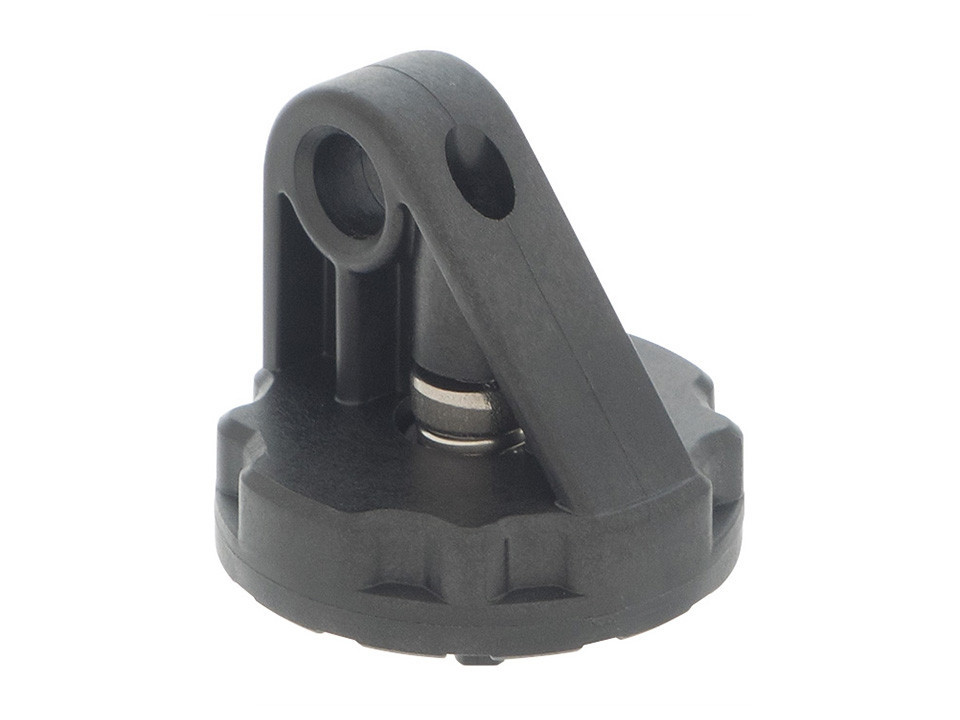

Inon Direct Base YS RT
Product Overview:
A YS Mount compatible base adapter to hold/attach an LED light, strobe or SD Mount Cage for HERO3/3+/4 via Single Light Holder LE, Single Light Holder LF or Z Joint to create simple and compact system. The YS Mount rotates 360 degree to benefit users with flexible aiming of combined lighting device.

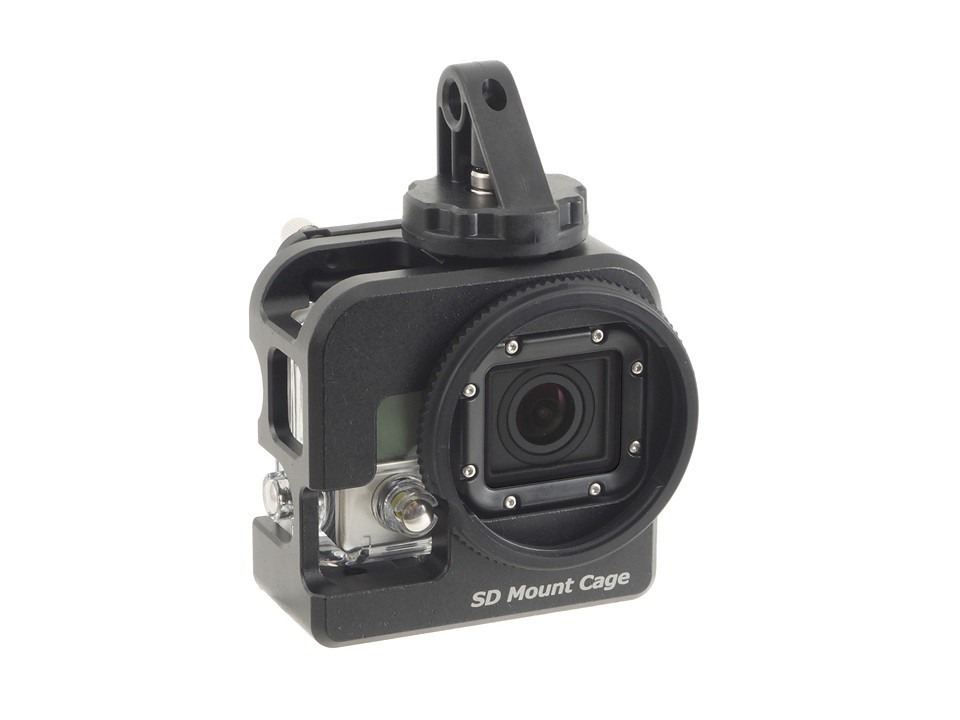

Directly attached on the Grip Base D4/Grip Base M1/D Holder/SD Mount Cage for HERO3/3+/4/Weight Plate or via optional M6 Plate Direct Base III or M5 Plate Direct Base III on a housing or other base products. It is also possible to attach the Direct Base YS RT on the middle of the Stick Arm or Multi Ball Arm via optional M6 Joint.
Compatible base/housing etc.
1. Directly attached
- Grip Base D4, Grip Base M1, D Holder, D Holder Extension Bar,Tripod Adapter,
- SD Mount Cage for HERO3/3+/4,
- Weight Plate (Screw Type), Weight Plate (Velcro Type)
2. Attached via optional "M6 Plate Direct Base III"
- X-2 series Housing, X1-Z/LZ/NZ Housing
- Holder II, Grip+Bar III Set, Holder II Grip Set, Holder Base,
- Grip+Bar I Set, Grip+Bar II Set,
- Grip Base DIII w/ Rubber Grip D, Grip Base DII w/ Rubber Grip D,
- Other brands' housing/arm system (*1)
- (*1) Compatible with 2 x M6 screw holes with 8mm or more depth and 13mm - 28mm center-to-center distance of screw holes.
3. Attached via optional "M5 Plate Direct Base III"
- Other brands' housing/arm system (*2)
- (*2) Compatible with 2 x M5 screw holes with 6mm or more depth and 24mm - 28mm center-to-center distance of screw holes.
Compatible arm
1. Attached via optional "M6 Joint"
- Stick Arm XS-T/SS-T/S-T/M-T/L
- Multi Ball Arm S/ML/L/LL/XL (Multi Ball Arm SS is not compatible)
