Isotta Canon EOS R6 Mark II Underwater Housing
The Ferrari of the Sea
Isotta Housings ship WITHOUT Manual Flash Triggers, Flash Bulkheads, T-Socket & Ball Mounts for the Housing Arms to attach Strobes, Video Lights etc

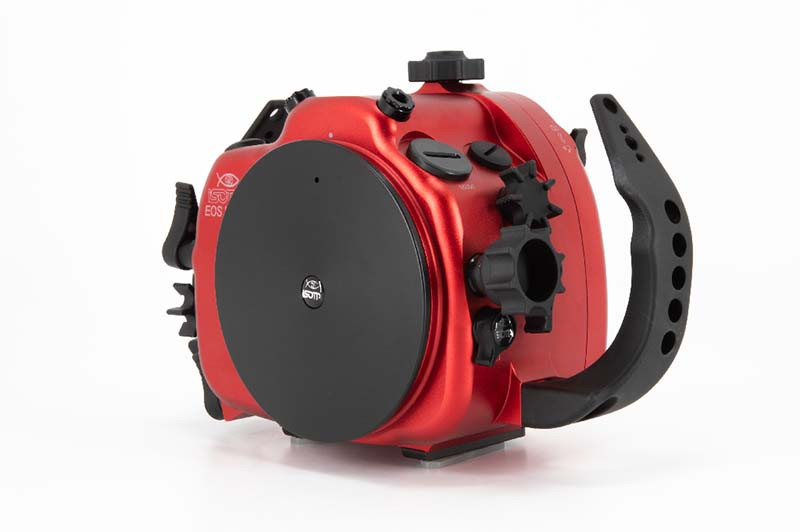

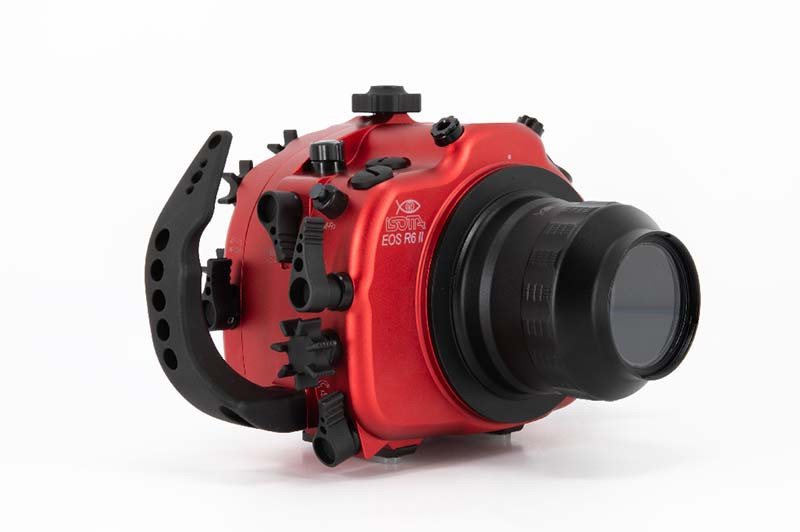

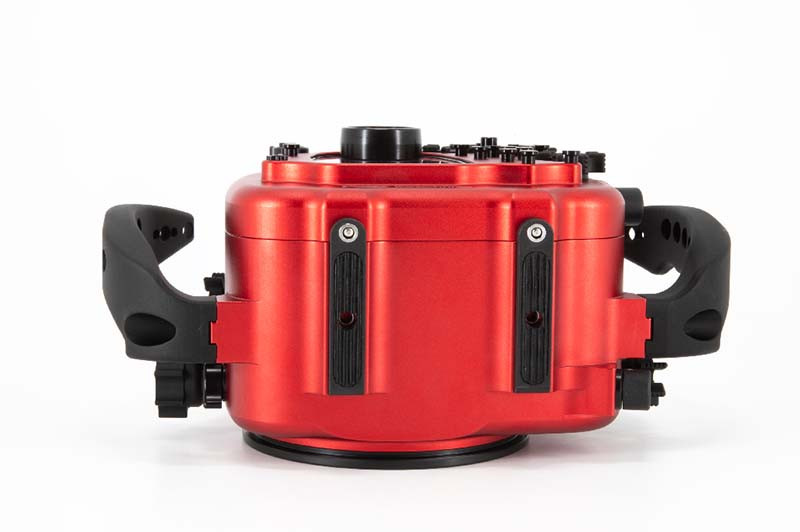

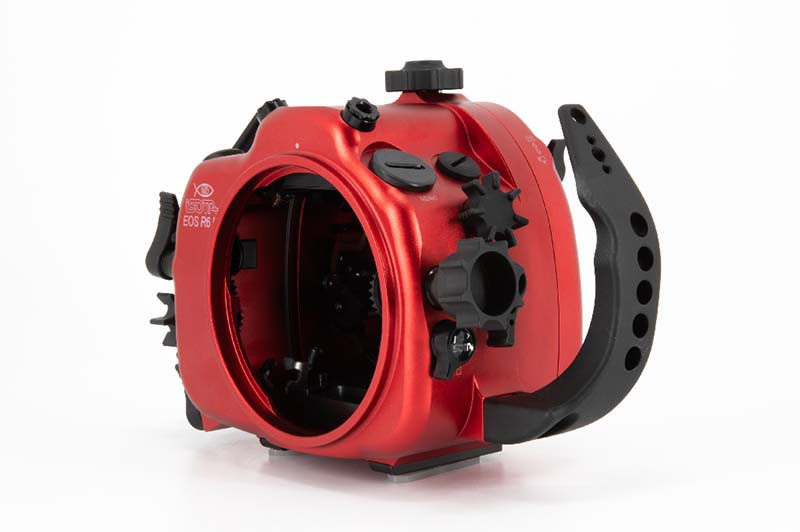

Isotta has been known to produce high quality aluminum housings, and their Isotta Canon EOS R6 Mark II Underwater Housing lives up to their reputation.
The compact and ergonomic design of the housing complements the lines of the camera and provides easy access to camera functions and accessories. All controls can be reached from the grip position, and the one-handed closing feature is especially useful in challenging situations. The choice between using live view or the viewfinder is a personal preference, so the housing is equipped with a large window for a full view of the camera's screen and a comfortable viewfinder that can be easily replaced.
The signature red color, elegant lines, and ergonomic handles have always been the hallmark of Isotta company
The lighting system is a crucial aspect of photography, and the housing is fully customizable to cater to the unique needs and preferences of each photographer. With three M16x1 connections and one M24x1 connection, it is possible to create an optimal configuration by using Sincro or S6 bushings, a Trigger system (to be specified when ordering), or simply the standard optical fiber connections.
The choice of lens is equally important, and the housing offers a variety of combinations between ports and extension rings to accommodate most lenses on the market.
Finally, accessories play a vital role in creating a unique and optimal setup. An M8 hole on top of the housing and two M6 threaded holes at the bottom allow for a wide range of accessory options.
The housing for Canon EOS R6ii leaves nothing to chance, from the use of high-quality materials to the smallest precautions. The bottom of the housing has three stainless steel locking pins that securely penetrate the anodized aluminum body for added strength and safety. Each movable and removable part is sealed with double O-rings to ensure watertight integrity up to a depth of 100 meters. Additionally, the housing is equipped with an alarm system that immediately alerts users of any increase in humidity inside the case, preventing potential damage to the equipment.
Key Features:
Single-Hand Locking System
The housings can be easily opened and closed using Isotta's innovative single-hand locking system. The single latch closing mechanism is a unique design and is effortless to operate while maintains a secure seal with its double steel pins design at the bottom of the housing.
Double O-Ring Seal
The Isotta Isotta Canon EOS R7 Underwater Housing utilizes the double o-ring seal design to ensure that the camera is always safe and dry inside the housing. It is always best to have a redundant o-ring on your seal to ensure that the housing is water-tight.

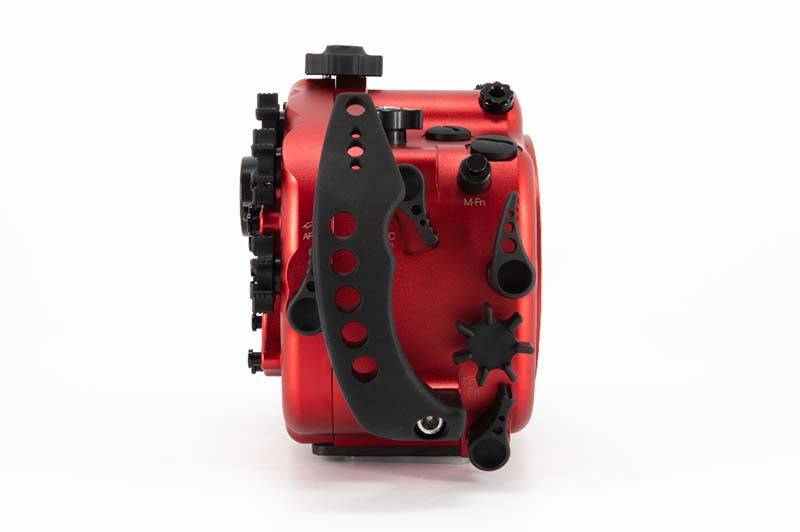

Comfortable Handles

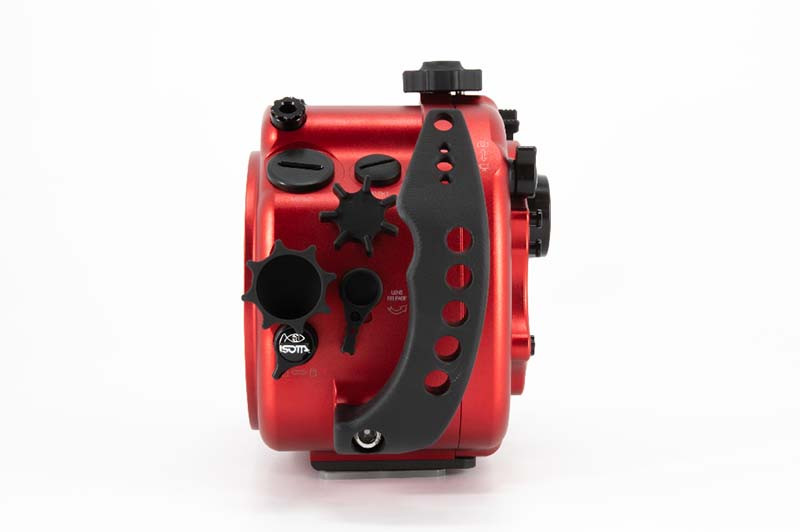

The included adjustable dual handle of the housing provides comfort when shooting. The ergonomically designed handles makes operating the camera easy and comfortable even when wearing gloves.
Ergonomic Button & Lever Placement

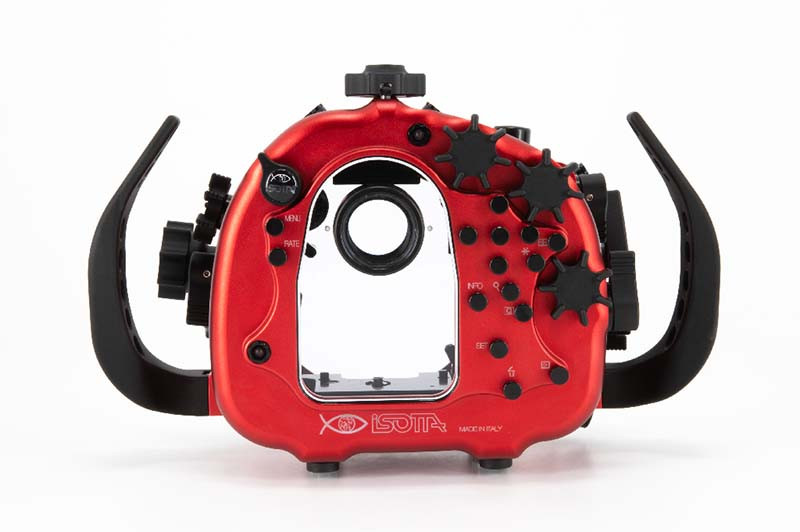

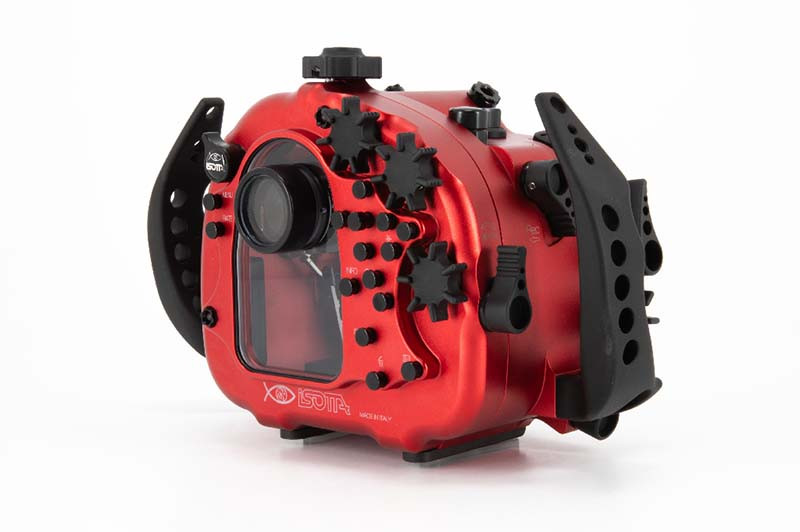

The location of the function buttons and control levers have been well planned and everything is readily available at your fingertips, which makes operation of the camera smooth and straight-forward. In addition, the function buttons have been laser-engraved so that the button labels are easily visible in darker conditions.
One is able to operate the following commands functions on the camera:
- ON/OFF lever of the Canon R6 Mark II
- Ergonomic camera focusing and shutter lever, easy to use with gloves
- Lens release lever
- Zoom knob with RF lens
- Zoom knob with EF lens
- Port safety lever
- Lens release lever
- Multi-function button
- Movie shooting lever
- Depth-of-field preview button
- Shutter button lever
- Main dial
- Rating/Voice memo button (RATE)
- MENU button
- Still photo shooting/movie recording switch
- Mode dial
- Quick control dial 2
- Multicontrol buttons
- AF point selection button
- AE lock button
- Quick control dial 1
- Magnify/Reduce button
- Quick control button
- Playback button
- Erase button
- SET button
- INFO button
Related Underwater Gear Categories:
-
Red color anodized aluminum body
-
Ergonomic side handles, adjustable (via optional accessory)
-
Two fiber optic connections standard(to use the flash needs an optional trigger)
-
Two M16 holes and one M24 for installation of accessories, e.g. syncro cords, vacuum valves, monitors
-
Back housing completely detachable from the front housing
-
Tray with lock for the easy insertion of the camera
-
Single-hand closing knob for the back of the housing
-
Aluminum buttons and dials with engraved symbols identical to camera controls
-

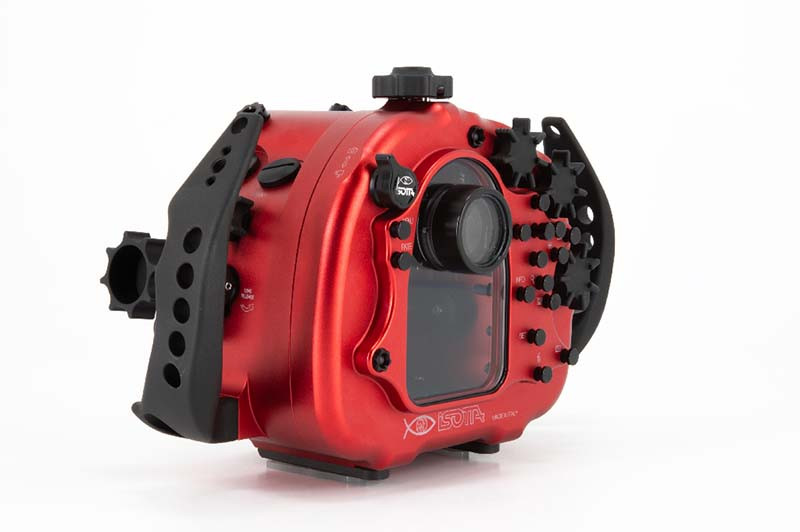

Wide back display viewfinder glass
-
Double O-Ring seals on all buttons and removable parts
-
Moisture sensor with LED indicator (replaceable battery)
-

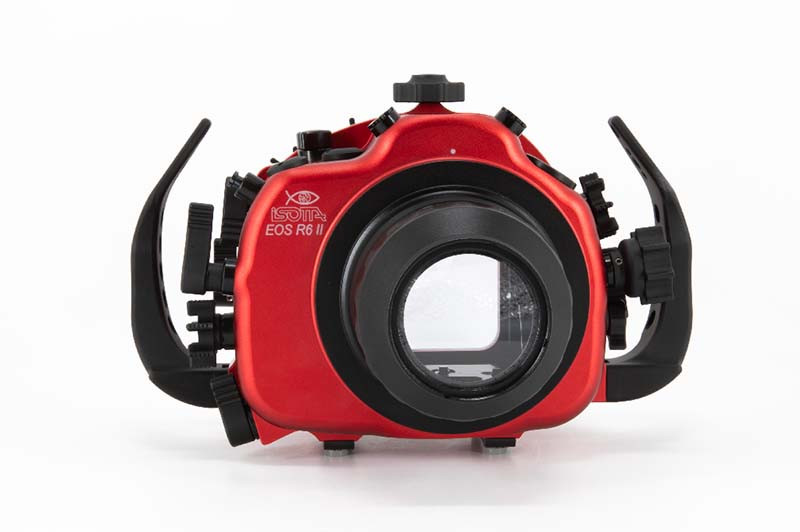

Removable port 120 mm bayonet
-
Ports security latch to prevent accidental opening
-
Wide, rubber covered feet for solid footing on boat floors or sea floor
-
M8 hole located on upper side of the housing for various accessories such as focus lights
-

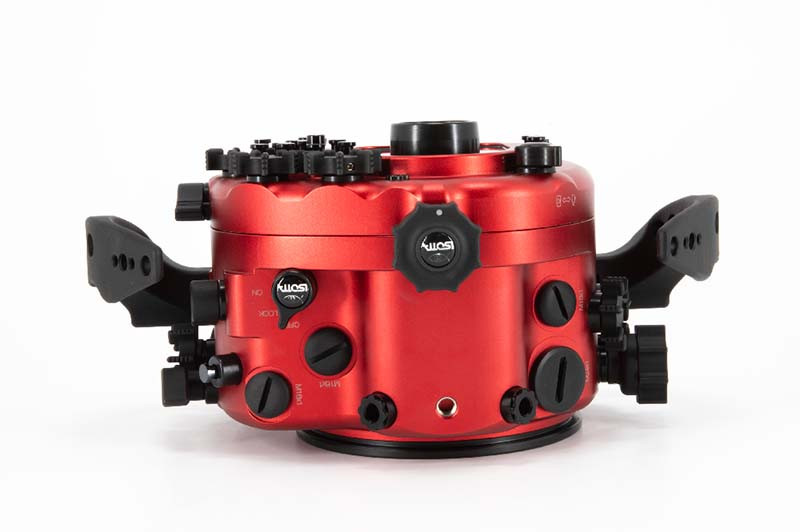

Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods
-
Prepared for ISOTTA vacuum (not included)
-
External viewfinders can be mounted, INON X-2 compatible
-
Sizes (LxHxP): 291.6x185.3x137.4
-
Depth rated to 100 metres;
-
Housing
-
Front lid
-
Handles
-
ISOTTA standard viewfinder
-
Moisture sensor
-
Fiber optic connections (to use the flash needs an optional trigger)
-
Spare o-ring kit
-
Silicone grease 15gr / 0,5 oz
-
2 years manufacturer warranty (excluding batteries)
We offer lifetime support with all purchases.
Please call or email us with any questions, our knowledgeable staff would love to assist you.
