ONEUW One 160X MkII Underwater Strobe
The ONEUW One 160X MkII is a high-specification strobe, engineered with precision and attention to detail. Its robust construction and superior functionality make it an ideal choice for experienced photographers. The strobe boasts a maximum energy of 162 Ws, a guide number of 20, and a coverage angle of 130°, offering a power suitable for wide-angle photos and even the most technical macro shots.
Product Design and Construction
The ONEUW One 160X MkII is made from high-quality hard anodized anticorodal aluminium, ensuring robustness and precision at levels of excellence. The strobe body, constructed with stainless steel control shafts featuring double sealing o-rings, guarantees an extremely strong build. This design allows the strobe to withstand pressures equivalent to a depth of 200 meters, making it suitable for all technical dives.
Optimal Lighting

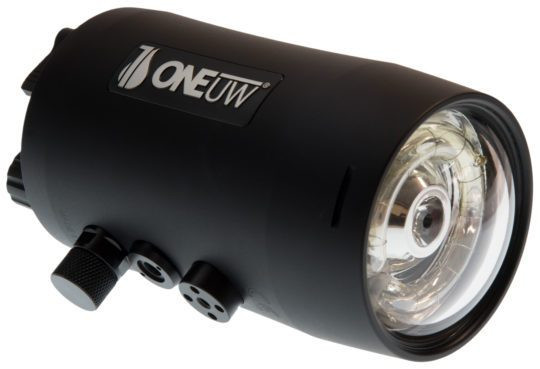

The ONEUW One 160X MkII is designed to provide the best light for your images. It features a circular flash lamp with a warm coating placed on a parabolic reflector with a dome port. This configuration ensures a high-quality light with a wide, uniform coverage and a slightly warm color temperature. The strobe also includes an LED coaxial pilot light with two power levels and an AF assistance mode.
Controls and Functionality

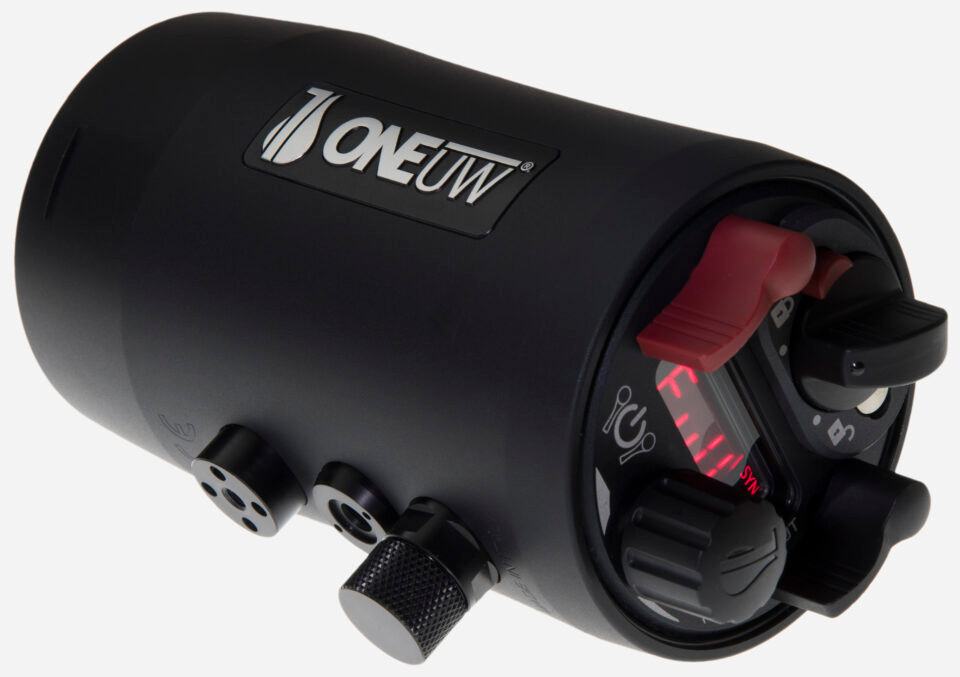

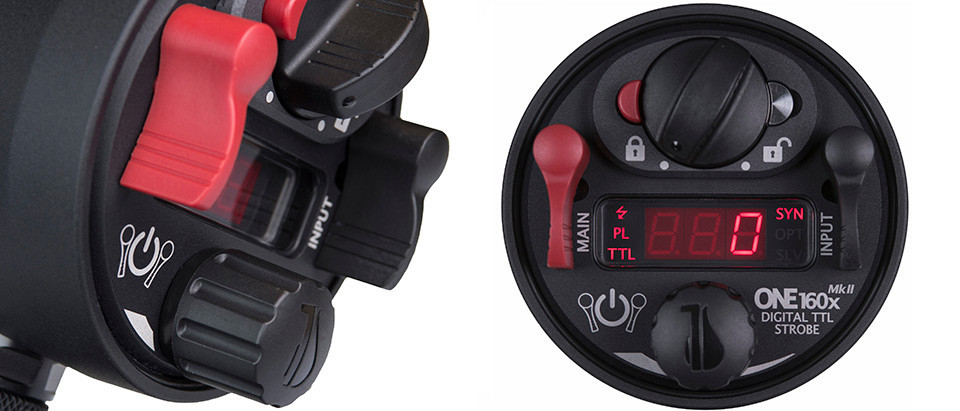

The strobe features large, ergonomically designed controls that are easy to handle and insensitive to hydrostatic pressure. The controls are laid out simply and rationally, providing a broad maneuvering area. The strobe also includes a wide, easily readable control display.
The ONEUW One 160X MkII offers multiple shooting modes, including Nikon, Canon, Sony digital TTL, s-TTL, film TTL, and manual. It provides energy control in manual mode at ½ f-stop increments over a range of -6 and exposure compensation in TTL mode at â…“ f-stop increments over a range of +/-2.
Power Supply
The strobe is powered by a removable NiMH battery pack made with professional high-energy cells from Panasonic. It ensures more than 250 flashes at full power and boasts fast recycling times, managed by a CPU, ranging from 0.1 to 1.6 seconds.
Connections and Synchronization
The ONEUW One 160X MkII offers full interface capabilities, without any limitation on use. It is equipped with both an S6 type synchro cable socket and a Sea&Sea; type fiber-optic cable socket. Moreover, an optical receiver is located on the front reflector for slave flash mode.
Key Features
- CNC machined with high-quality anticorodal aluminium and hard anodized
- Shooting modes: Nikon-Canon-Sony digital TTL, s-TTL, film TTL, manual
- Digital protocols Nikon, Canon, Sony on-board selectable by users
- Firmware upgradable by user via APP-Bluethoot
- High-speed sync HSS available in digital TTL and manual by sync cable
- Circular flash lamp, warm color, on parabolic reflector with dome port
- Imput by S6 synchro cable socket, Sea&Sea fiber-optic cable socket, slave sensor
- Ergonomic controls insensitive to hydrostatic pression
- Input, operating mode and power level showed on digital display
- Max energy: 162 Ws (J)
- Manual mode power control range – steps: Full -6 f-stop - 1/2
- TTL mode EV control range – steps: ± 2 f-stop - 1/3
- Maximum shutter speed in HSS mode, up to 1/8000 s
- GN Guide number ISO100 @ 1m: 20
- GN Guide number ISO100 @ 1m - detection angle: 20-90° | 18-110° | 16-130°
- Beam angle: 130° (circular)
- Number of full power flashes: over 250
- Recycle time: 0.2-1.6 s
- Color temperature: 4,600K
- Pilot light: Led 200 lm 10° 2 steps
- Power supply: interchangeable battery pack
- Battery type and capacity: NiMH 4.8V 3050mAh
- Battery charging time: 90 min
- Flash arm connection: M6 threaded hole
- Dimension Diameter x Length (controls included): 99x200 mm / 3.9x7.9in
- Weight in air battery included: 1.46 kg / 3.2 lbs
- Weight UW battery included (with neoprene cover): ≈-170 g (≈ -50 g) / -6oz (-1.75oz)
