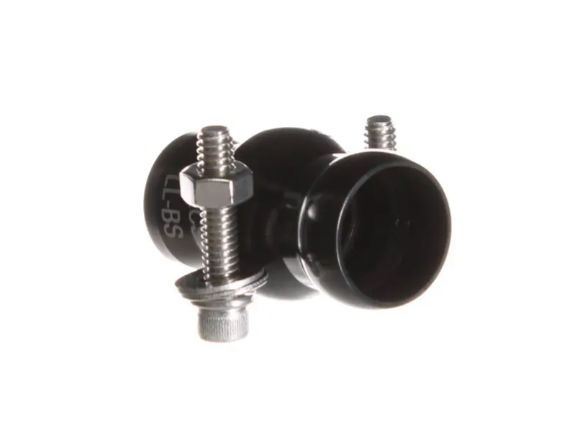

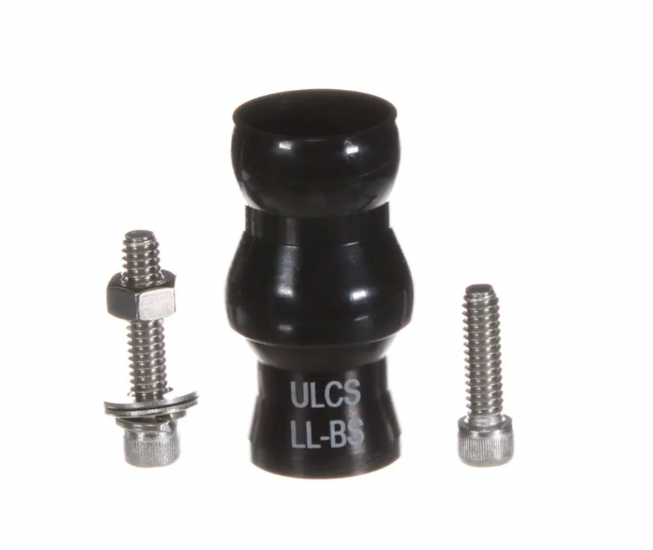

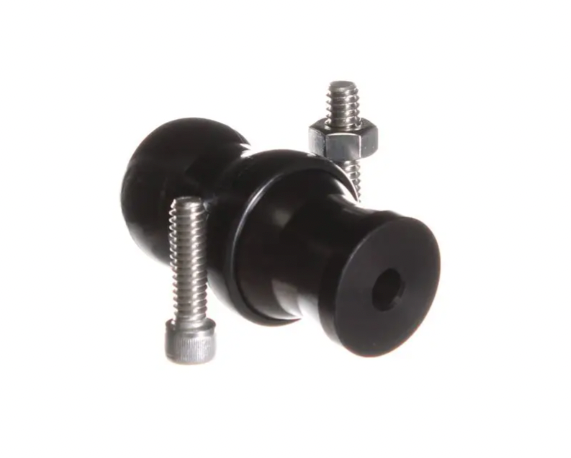

Ultralight LL-BS bolt on base with 3/4" Locline
The LL-BS was designed to bolt to the LL-BA or any other part that a 3/4" locline would be needed. It is 1 1/2" diameter, 1" tall and has a 1/4" threaded mounting hole on top. It can be bolted to most anything using either the 1/4"-20 x 7/8" or 1/4"-20 x 1 1/4" allen bolts and the two flat washers, one split washer and one 1/4" nut that are included. Also included is an attached section of 3/4" Locline. Its black in color and made out of 6061 T6 aircraft-grade aluminum with Type III anodizing and included hardware is 316 stainless steel.
Key Features
- The LL-BS was designed to bolt to our LL-BA or any other part that a 3/4" locline would be needed.
- It is 1 1/2" in diameter, 1" tall, and has a 1/4" threaded mounting hole on top.
- It can be bolted to almost anything using either the 1/4"-20 x 7/8" or 1/4"-20 x 1 1/4" allen bolts and the two flat washers, one split washer, and one 1/4" nut that are included.
- Also included is an attached section of 3/4" Locline.
- It's black in color and made out of 6061 T6 aircraft-grade aluminum with Type III anodizing
- Included hardware is 316 stainless steel.
- Will work in the harshest of environments and built to last
Weight:
0.50 LBS
Dimensions:
2.00
(in)
×
3.00
(in)
×
2.00
(in)
Brand:
Ultralight Camera Solutions
- 1 x Ultralight LL-BS bolt on base with 3/4" Locline
