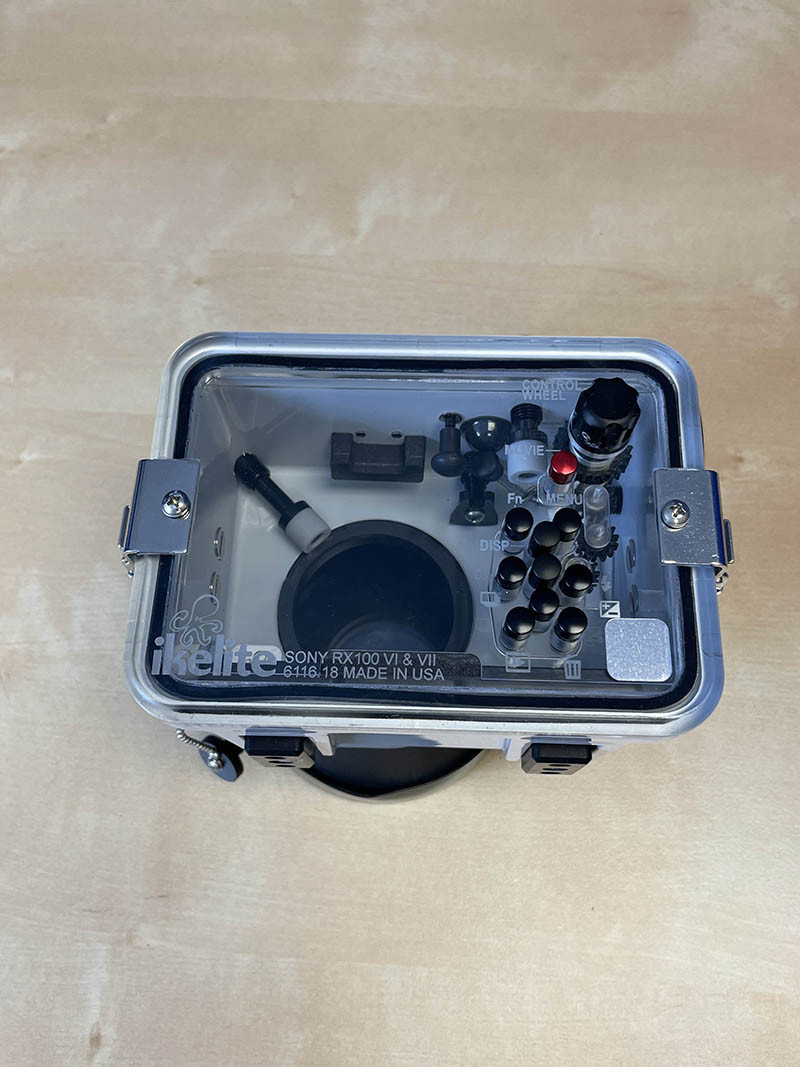

USED: Ikelite Sony RX100 VI and RX100 VII Underwater Housing
SOLD
The new Sony RX100 VI and Sony RX100 VII has an extended zoom lens in addition to many other new features. To make it useable underwater with such a long zoom range, Ikelite has developed a new removeable port for the Ikelite Sony RX100 VI/VII Underwater Housing. This housing is crafted from lightweight, yet very strong ABS Polycarbonate and ready for any in or near water use such as scuba diving, pool photography, surf photography and more.
RX100 VI Review
Read our full Sony RX100 VI review and Sony RX100 VII review to lean more about its features and why we love it for underwater photography.
Product Features:
Construction
Ikelite's ABS-PC blend provides strength and corrosion free performance with minimal maintenance. The specially formulated color deflects the sun to keep your camera running cooler, longer. Compared to black or clear housings, the light color provides superior contrast for enhanced view of the camera, LCD screen, and o-ring seal.
Ikelite products are designed, built and tested in the USA. They use locally sourced, top-grade materials. The Ikelite housings are built by hand and individually tested for fit, function and waterproof integrity.
Ergonomics
A slide-in, front loading camera mount makes this housing a breeze to set up and shoot. Controls are provided for all important camera functions including front and rear control dials. Controls are placed in an intuitive position and designed for comfortable access whether you're holding the housing or an add-on handle.
A sensitive shutter lever makes it easy to half-depress the trigger for focusing and metering. Rear push button controls are laser engraved for identification with a new bright red push button for the video record start/stop.
The camera's large LCD screen can be seen clearly through the back of the housing. The screen can be tilted during installation for more comfortable viewing underwater.
Use the camera's built-in WiFi feature to download photos to another device without removing the camera from the housing. The WiFi feature is only usable above water within close proximity to the connected device.
Flash
Due to the position of the camera's flash in relation to its lens, the built-in flash is not suitable to illuminate photos under water. For the best color and clarity, we recommend adding a filter, strobe, or constant-on light. The built-in flash may be used to trigger external strobes via fiber optic sync cord. Two ports are provided for the connection of up to two fiber optic cords.
Any Ikelite DS strobe may be connected using the Fiber Optic Converter # 4401.1 and Fiber Optic Cord # 4501 (or any high quality fiber optic cable, such as Sea & Sea or Nauticam). The AF35 strobe is not compatible with this housing.
The optional Action Tray II with Left Handle # 2605.04 and Action Tray II Extension with Right Handle # 2605.05 provide a balanced grip and are the perfect platform for adding lighting accessories.
The Action Tray II mounts to the bottom of the housing with two 1/4-20 threaded screws for secure and rotation-free use. Ikelite's uniquely curved grips are rubberized for a comfortable grip and provide a quick release mechanism for adding and removing light arms.
Zoom, super macro, and semi-wide angle
The standard 3.9" diameter optical glass port accommodates the camera's full 24-200mm zoom range underwater.
Add the press-fit Macro Adapter # 9306.82 with any 67mm threaded macro wet lens for incredibly super macro photography.
The optional WD-4 Wide Angle Dome # 6430.4 provides a wider angle of view underwater without the edge distortion, vignetting, or weight typically associated with an external wide angle wet lens. The WD-4 is a 0.75x magnification factor and simply slides on and off of the housing's lens port.
3.9" diameter color filters press directly onto the front of the standard lens port. We offer color filters for Tropical Blue Water # 6441.46, Green Water # 6441.86, and a Yellow Barrier Filter # 6441.16 for fluorescence photography.
Optional wide angle port
The optional Wide Angle Port M67 for Sony RX100 VI # 9306.02 can be used in place of the housing's standard port for use of 67mm threaded external wide angle wet lenses. This port has been optimized to provide the best combination of wide angle and macro photography. The shorter port length accommodates an effective zoom range of 24-70mm.
This port is optimized for use with wide angle wet lenses designed for the 28mm equivalent focal length, including the AOI UWL-09, Kraken KRL-01, INON UWL-H100, Nauticam WWL-1, and others. Some vignetting (dark shadows around the edges of the image will be present at wider focal lengths. We recommend zooming to eliminate vignetting or cropping your images in post-production.
The front of the port also accepts 67mm threaded macro wet lenses like our BWP +7, and most other threaded wet lenses.
The standard lens port is removed and the Wide Angle Port M67 simply threads into the front of the housing for quick and easy installation. The camera cannot be zoomed past 70mm with this port attached. The camera will shut down if zoomed past this point.
Sealing and Vacuum Testing
There is no greater assurance than being able to see your camera and o-ring seal through the back of the housing. Ikelite's signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Once the housing is closed you can see the o-ring form a solid, waterproof seal.
A spare 1/2-20 threaded accessory port is provided on the side of the housing for easily installation of the optional Vacuum Kit # 47012. A hand pump with gauge allows you to draw a vacuum on the housing to simulate water pressure and check for leaks prior to entering the water.
Every unit is water pressure tested to 200 feet (60m) before it leaves the facility in Indianapolis.
Compatibility
Older RX100 Mark I, II, III, IV, and V cameras are not usable in this housing due to differences in lens and control placement. The Sony AG-R2 Attachment Grip is not compatible with this product.
Recommended Lenses:
- Bluewater +7 macro lens gives very good results, we recommended stacking 2 of these lenses for supermacro
- AOI UWL-09 Lens gives excellent wide angle results and offers full zoom through!
Read our recommended wet lenses for underwater photography and video
Related Underwater Gear Categories:
Video Review:
Sample Images:
- 200 ft (60 m) depth rating
- Controls for all camera functions except Flash switch and Viewfinder switch; camera's built-in flash may be extended during installation
- Slightly negative buoyancy in fresh water
- 1/4-20 threaded tray mounting with 3" (76mm) spacing
- Weighs 2.8 lb (1270 g)
- 6.1 x 5.1 x 6.8" (155 x 130 x 173 mm)
- 3.9" diameter glass lens port
- Housing
